Ex Mark: Ex d IIB T6 Gb, Ex tD A21 IP66
Application: Zone 1, 2 & 21, 22
Energy Saving 4000K IP66 Explosion Proof Led Light Fixtures
Explosion proof led light fixtures 50W/80W100W 100-277VAC & 12-32VDC 50/60Hz wide beam 60°/90°/120° degree and water proof and dust proof IP66 and output lumen 6,000-13,500lm
Lighting under harsh conditions

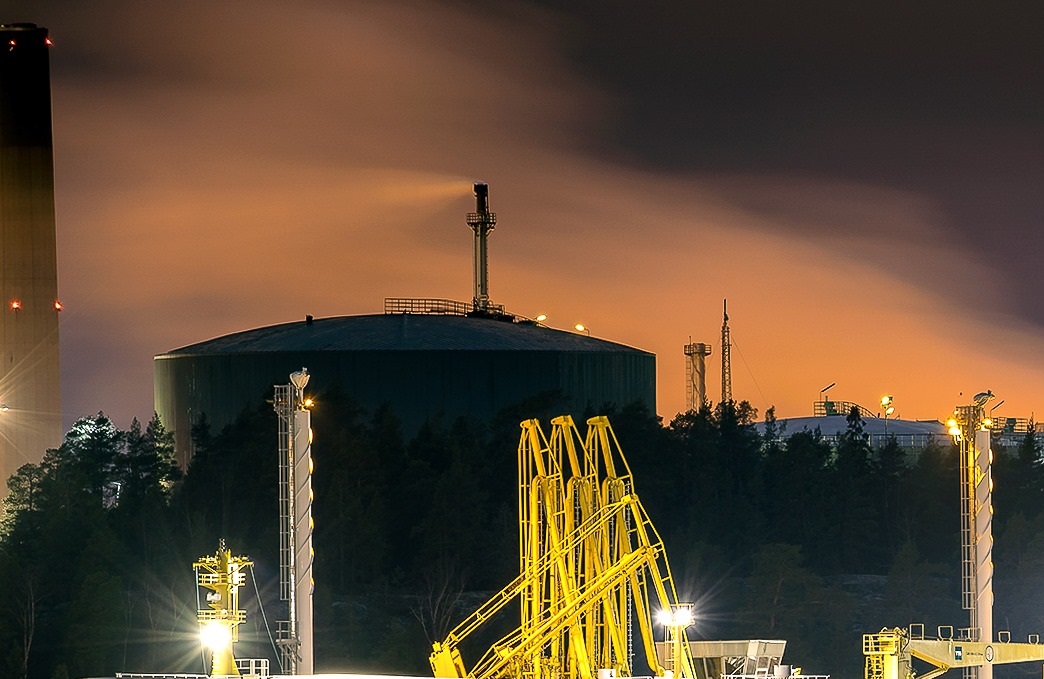

The new Grampus LED floodlight series GYD780 is suited for nearly every kind of lighting task in hazardous areas, including applications in on- and offshore,heavy industrial, chemical, petrochemical, oil and gas, pharmaceuticals,shipyards, dockyards,power generation, paper mills and wastewater treatment indoor and outdoor with potentially explosive areas under harsh conditions like vibrations, dust,moisture or corrosive atmospheres and extreme temperatures.The Grampus comes with a standard U-shaped mounting bracket for ceiling and wall mounting.
Replacement of conventional light fittings up to 800 W
With a luminous flux from 6,000 lm up to 20,250 lm this floodlight series can be used to replace nearly every floodlight with conventional light sources with an equivalent power consumption from 250 W up to 800 W.
High efficient LED technology
High efficient power LED flood with up to 135 Lumen/Watt enables up to 80 % energy-cost savings compared to conventional HID lamp.
| 50W / 80W /100W ATEX & IECEx Flood & high bay light | LCD-GYD780-50/80/100 |
| LEDs | Brand: Cree |
| CCT: 3000k, 4000k, 6000K |
| Efficiency: 135lm/w |
| Lumen: 6250-13500lm |
| CRI:75 |
| Test: LM80 |
| Beam Angle | 60° / 90° / 120° degree |
| Driver | Brand: Meanwell |
| PF: 0.95 |
| Efficiency: 90% |
| Voltage: 100~277vAC or 12-32VDC |
| Frequency: 50/60Hz |
| Current: 1.44 A |
| Instructure | Material: 12mm flame proof Aluminum alloy + 15mm Temple glass |
| Connecting terminals: 3 cores standard |
| Gland: 1 x M25 or 1xM20 |
| Support: Bracket |
| Waterproof | IP66 |
| ATEX Information | Certificate: TUV 18 ATEX 8298 X |
| Marks: D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66 |
| Zone 1& 21, 2 & 22 |
| IECEx Information | Certificate: IECEx TUR 18.0064 X |
| Marks: Ex db IIB T6 Gb/ Ex tb IIIC T80°C Db |
| Zone 1& 21, 2 & 22 |
| Working Temp.: | T -30 °C up to +55 °C |
| Weight | 10KG |
| Warranty | 5 years |

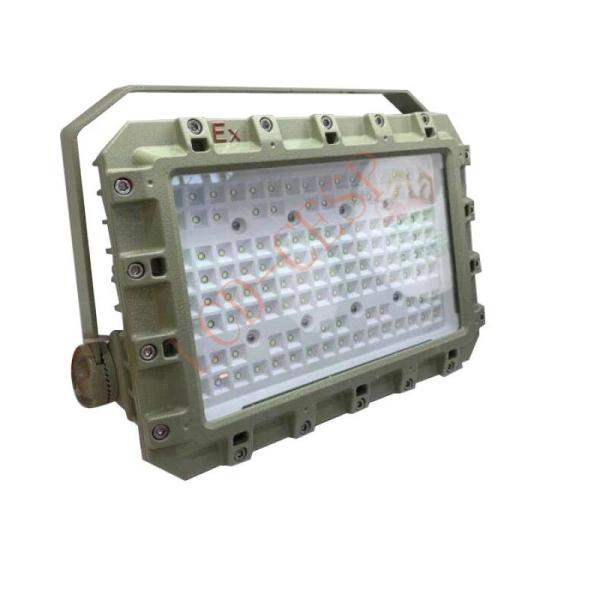

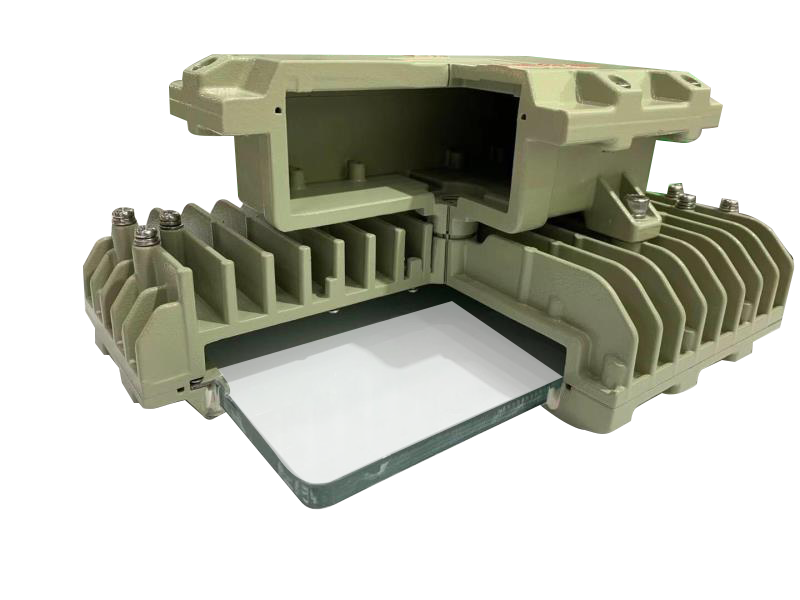

Product Pictures:
Installation
• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel.
Photometric Data (LIGHT DISTRIBUTION CURVE)
|
|
Install circling & Round Explosion proof flood light fixtures 6250 lumen to 19500 lumen Images
|
